Blue–White Chemical Metering Pumps
Peristaltic and Diaphragm Metering Pumps available through Hawkins in the following states: IA, MN, ND, NE, SD and WI
At Hawkins, we recognize the importance of proving safe drinking water and effective wastewater disposal while meeting regulatory requirements. That’s why we proudly offer Blue-White’s comprehensive range of high-performance water quality solutions, designed for optimal water and wastewater treatment. With our combined expertise and commitment, we ensure that you achieve success-delivering clean, safe water to you community while maintaining compliance and peace of mind.
Blue-White FLEXFLO® Municipal Peristaltic Pumps
Superior Peristaltic Metering Technology. Smooth and Quiet Pumping Action. Highly Accurate Feed Capabilities.
Benefits of the Blue-White Peristaltic Pumps:
- Peristaltic pump design does not have valves that can clog requiring maintenance
- Self priming – even against maximum line pressure. By-pass valves are not required
- Cannot vapor lock or lose prime
- Tube failure detection (TFD) system, Patented
- Flow Verification Sensor (FVS) ready
- Multiple signal inputs and outputs (4-20mA, etc.)
- Simple to configure
- NEMA 4X, IP 66, Washdown
Blue-White FLEXFLO® M4 Metering Pump Benefits:
- 5” touchscreen color LCD display
- Self-priming – even against maximum line pressure. By-pass valves are not required. Cannot vapor lock or lose prime. 30ft of suction lift. Gentle low shear pumping action.
- Tube Failure Detection (TFD) senses tube rupture by detecting chemical in the pump head. No false triggering – Patented
- Feed Rates from .0028 to 158.5 GPH / .01 to 600 LPH
- Revolution count display & alarm
- NSF Listed Std. 61
- NEMA 4X, IP 66, Washdown
Blue-White FLEXFLO® M3 Metering Pump
- Feed Rates from .0002 to 33.3 GPH / .0007 to 126 LPH
- Pressures to 125 PSI / 8.6 Bar
- Brushless DC motor
- Tube failure detection
- Revolution count display & alarm
- NSF Listed Std. 61
- NEMA 4X, IP 66, Washdown

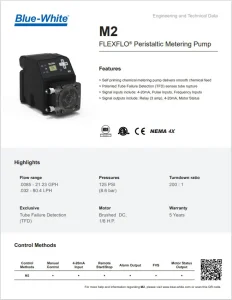

M2 Peristaltic Metering Pump

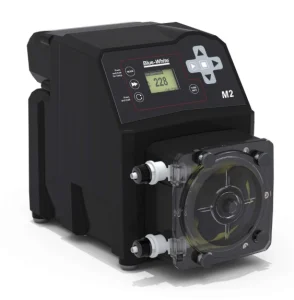

Blue-White FLEXFLO® M2 Metering Pump
- Feed Rates from .01 to 17.2 GPH / .03 to 65.1 LPH
- Ideal for small to medium size treatment plants
- Self priming, valveless design cannot vapor-lock
- Gentle and efficient pumping action
- Quiet and smooth chemical feed
- Simple to configure, operate and maintain
- Patented and multiple patents pending
- NSF 61 Listed
- NEMA 4X, IP 66, Washdown

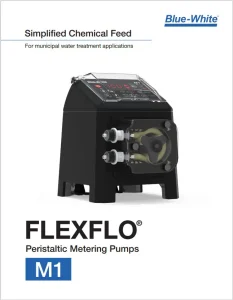

Blue-White FLEXFLO® M1 Peristaltic Metering Pump
The FLEXFLO® M1 Peristaltic Metering Pump offers reliable chemical feed with simple-to-use controls and precise adjustability.
Ideally suited for low to medium flow applications, this compact, rugged self-priming pump delivers smooth chemical feed and does not require check valves or seals that can clog, leak, or corrode.
Benefits of a Peristaltic Pump:
- Peristaltic pump design does not have valves that can clog requiring maintenance.
- Self-priming – even against maximum line pressure. By-pass valves are not required.
- Cannot vapor lock or lose prime.
- Output rates to: .0001 – 5.6 GPH (.0004 – 21.2 LPH) and pressures to 100 PSI (6.89 Bar).
- NSF 61 Listed
- NEMA 4X, IP 66, Washdown
Blue-White Diaphragm Pumps
Main Features
- Motor driven diaphragm pump offers smooth and quiet chemical dosing. No hard pulses as seen with solenoid driven pumps
- Full stroke every time avoids vapor lock
- Variable speed DC motor
- Rated for continuous duty (24X7)
- PVDF / Ceramic pump head components
- Diaphragm Failure Detection (DFD) system. Senses diaphragm failure by detecting chemical in pump head
- Backlit LCD displays motor speed, input signal values, service and alarm status
- CNC precision machined cam and piston for optimum efficiency, unparalleled accuracy, and linearity
- Heavy duty PVDF pump head and valves are standard

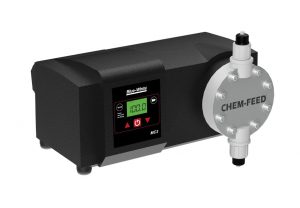

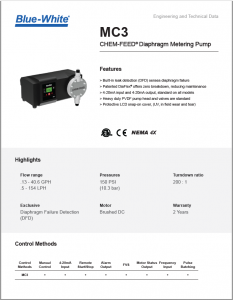

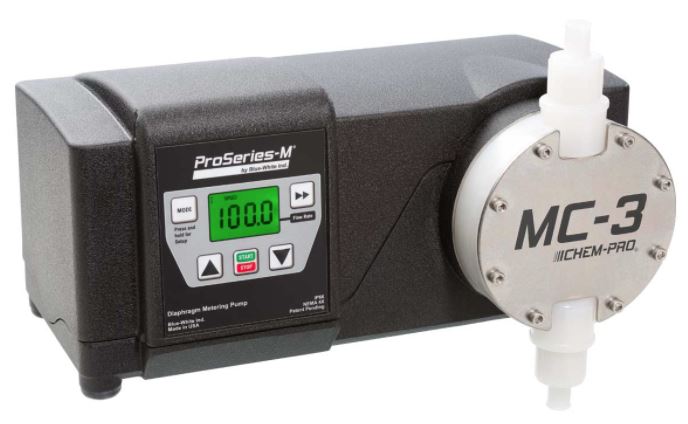

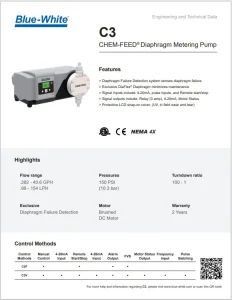

Blue-White CHEM-FEED® C3 Diaphragm Metering Pump – Model Specific Features
- Pumps are NSF 61 listed. Ensures public health and safety
- Capable of displaying flow rate
- 4-20mA input and 4-20mA output, standard on all models
- Exclusive DiaFlex diaphragm. (Patent Pending)
- 316 SS pump head cover for added strength
- Sold and serviced exclusively by highly skilled, factory authorized technicians
- 200:1 Turndown ratio
- Optional advanced communications: Industrial Ethernet, Modbus TCP, ProfiNet, Modbus, Profibus
- NEMA 4X, IP 66, Washdown

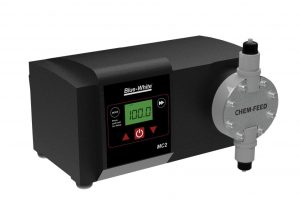

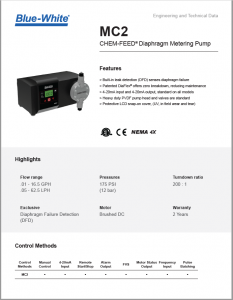

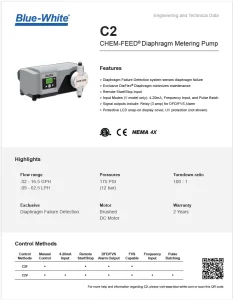

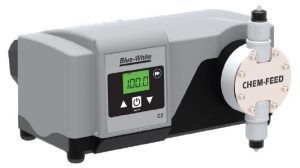

Blue-White CHEM-FEED® C2 Diaphragm Metering Pump – Model Specific Features
- Pumps are NSF 61 listed. Ensures public health and safety
- Capable of displaying flow rate
- 200:1 Turndown ratio
- Exclusive DiaFlex diaphragm. (Patent Pending)
- 316 SS pump head cover for added strength
- 4-20mA input and 4-20mA output, standard on all models
- Optional advanced communications: Industrial Ethernet, Modbus TCP, ProfiNet, Modbus, Profibus
- NEMA 4X, IP 66, Washdown

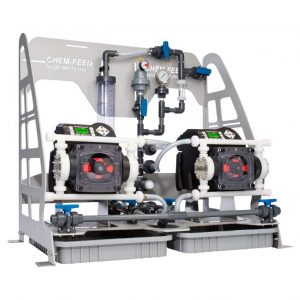

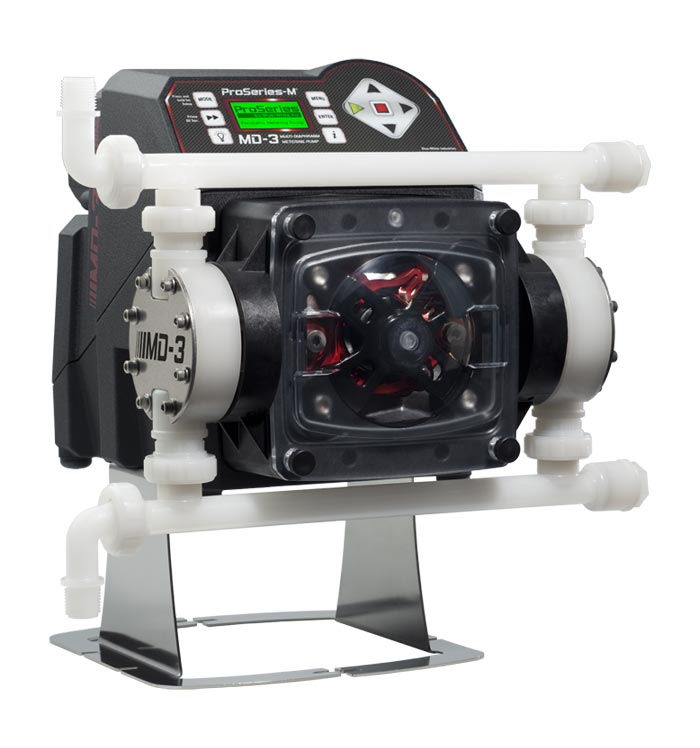

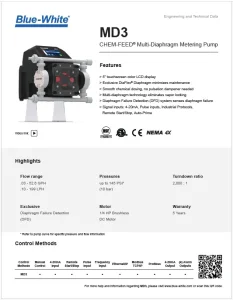

Blue-White MD3 CHEM-FEED® Multi-Diaphragm Metering Pump Features:
- Touchscreen controls, M12 connection ports, industrial communication protocols
- Hybrid diaphragm metering with industry best turndown at 2,000:1
- Pump is NSF 61 listed. Ensures public health and safety
- Smooth chemical dosing, no pulsation dampener needed
- Exclusive DiaFlex diaphragm. (Patent Pending)
- Built for long life at high pressures
- Output rates to 58 GPH (220 LPH) and pressures to 145 PSI (10 bar)
- Quick visual inspection with built in LED light
- Simple installation and setup with built-in controls, drop-in-place
- Diaphragm Failure Detection (DFD) system. Senses diaphragm failure by detecting chemical in pump head
- No maintenance brushless variable speed motor
- Included wetted end fittings allow for more than 14 inlet and outlet configurations
- NEMA 4X, IP66, Washdown

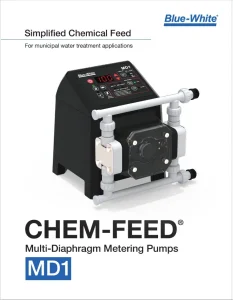

The Blue-White MD1 CHEM-FEED® Multi-Diaphragm Metering Pump Features:
The MD1 Multi-Diaphragm Metering Pump delivers smooth, continuous chemical feed even when injecting chemicals that off-gas like Peracetic Acid and Sodium Hypochlorite. The cutting-edge Hyperdrive Technology allows for alternating pumping action between two diaphragms: when one diaphragm is in the suction phase, the other is in the discharge, resulting in a smooth chemical feed profile and eliminating the chance of vapor lock.
The MD1’s exclusive DiaFlex® Diaphragms will last the life of the pump, eliminating the need for expensive rebuild kits.
Benefits:
- Exclusive Hyperlink Drive technology allows for smooth chemical feed – Patent Pending
- Dual Diaphragm with full stroke technology will not lose prime, ideal for pumping chemicals that off-gas (Peracetic Acid, Sodium Hypochlorite)
- Can pump chemicals continuously, like a peristaltic pump, without the need for tube assemblies
- NEMA 4X, IP 66, Washdown
