Chem-Feed Skid Systems

CHEM-FEED® ENGINEERED SKID SYSTEMS

The All-In-One Skid System
Superior Quality
Simply Drop Into Place and Connect To Your System

 …………….

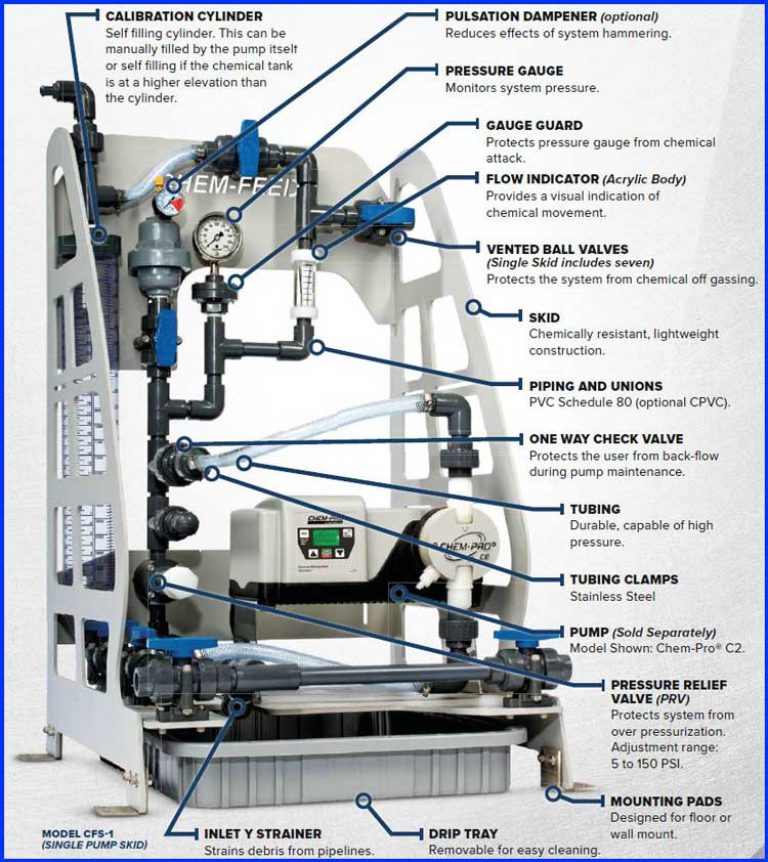

Chem-Feed Single Skid
♦    Compatible with: ProSeries® Metering Pumps: Flex-Pro® and Chem-Pro®
♦    Mounting Positions: Floor or Wall

Single Engineered Skid Systems for ProSeries® Metering Pumps – Features:
•    Efficient, Small footprint Design
•    The pre-fabricated design allows for easy installation
•    Simply drop the Skid System in place and make your connections
•    Each system is rigorously factory tested
•    Includes pressure switch option
•    Easy access to wiring components from the rear of the system
•    Joints use Weld-On 724 solvent cement which is chemically resistant to Sodium Hypochlorite and other chemicals
•    Dual side inlets enable connection of multiple skids to the same inlet
•    Available with the factory options. Custom modifications are not possible

Optional Flow Verification Sensor for monitoring system: Chemical injection failure stops pump, and triggers an alarm relay to start a back-up pump

(Sold Separately) Flex-Pro® model A2, A3 or A4 peristaltic pumps or Chem-Pro® model C2 or C3 diaphragm pump.



Construction:
Skid
•    Polyester powder coated 6061 T6 aluminum
•    Welded joint construction
Mounting Pads
•    316 Stainless Steel (non-wetted part)
Piping & Unions
•    PVC Schedule 80 (optional CPVC)
Inlet Y Strainer
•    PVC body (optional CPVC), FKM elastomers (optional EPDM)
•    Suggested for diaphragm pump applications
Tubing
•    Reinforced braided PVC, 200 PSI max
Tubing Clamps
•    300 series SS band, 400 Series SS screw
Drip tray
•    Polypropylene, 4 gallon containment each tray

Chem-Feed Dual Skid
♦    Compatible with: ProSeries® Metering Pumps: Flex-Pro® and Chem-Pro®
♦    Mounting Positions: Floor or Wall

Dual Engineered Skid Systems for ProSeries® Metering Pumps Features:
•    Efficient, Small footprint Design
•    The pre-fabricated design allows for easy installation
•    Simply drop the Skid System in place and make your connections
•    Each system is rigorously factory tested
•    Includes pressure switch option
•    Easy access to wiring components from the rear of the system
•    Joints use Weld-On 724 solvent cement which is chemically resistant to Sodium Hypochlorite and other chemicals
•    Dual side inlets enable connection of multiple skids to the same inlet
•    Available with the factory options. Custom modifications are not possible

Optional Flow Verification Sensor for monitoring system: Chemical injection failure stops pump, and triggers an alarm relay to start a back-up pump

(Sold Separately) Flex-Pro® model A2, A3 or A4 peristaltic pumps or Chem-Pro® model C2 or C3 diaphragm pump.



Construction:
Skid
•    Polyester powder coated 6061 T6 aluminum
•    Welded joint construction
Mounting Pads
•    316 Stainless Steel (non-wetted part)
Piping & Unions
•    PVC Schedule 80 (optional CPVC)
Inlet Y Strainer
•    PVC body (optional CPVC), FKM elastomers (optional EPDM)
•    Suggested for diaphragm pump applications
Tubing
•    Reinforced braided PVC, 200 PSI max
Tubing Clamps
•    300 series SS band, 400 Series SS screw
Drip tray
•    Polypropylene, 4 gallon containment each tray

Additional Products And Product Lines Are Available – Contact Sales For More Information

Delivering The Quality Service You’re Looking For:

Our drivers are skilled technicians trained to provide on-the-spot service  with the ability to troubleshoot and repair chemical feed equipment in the field.

An inventory of parts and loaner feed equipment are available on our delivery trucks, if needed.

Hawkins and your Sales/Service Representative are available 24 hours a day, 365 days a year to meet your needs. Hawkins has and will continue to aid customers with emergencies that could occur.
