Stenner Pumps

Stenner Pumps

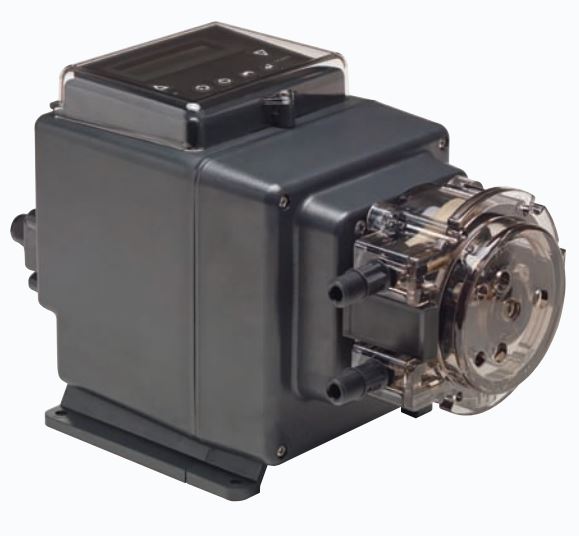

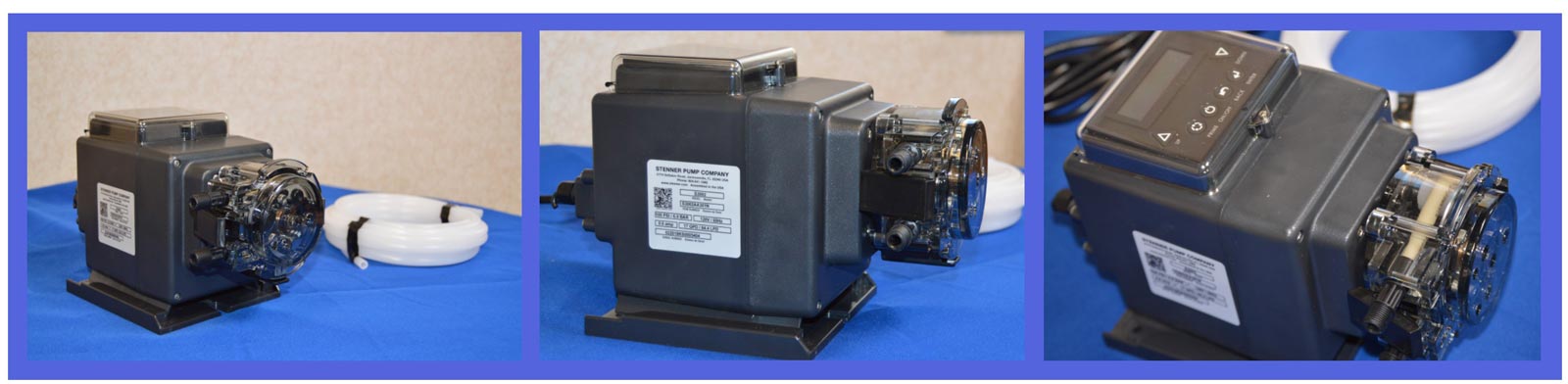

Stenner S Series Peristaltic Pump

•   Smart Technology
•   Simple Programming
•   Solid Construction

The S Series interfaces with process simple programming control systems utilizing a 4-20ma output signal and three relay outputs.

Built to NEMA 4X for demanding applications. Select from multiple performance indicators and operational modes with intuitive programming and easy navigation. Fine-tune the pump to fit the application; monitor the pump for peace of mind. Prevent unauthorized access to programmed settings with the password protection.



SMART TECHNOLOGY

Performance Indicators – Program the pump to respond based on a selected condition:

•   Tube Leak
•   Tube Change
•   Standby
•   Repeat Pulse
•   Run
•   Mode Change
•   Low Signal
•   High Signal
•   Low Flow
•   High Flow
•   Drive Fault
•   Signal Overrun
•   Transfer
•   Off

Tube Leak Detector – Key Feature

•   Can detect solution in the pump head, vertically or horizontally
•   Program alarm indicator with option to stop pump upon alarm
•   Calibrate the sensitivity to avoid false detection

TUBE TIMER Set the tube’s life expectancy in hours. When the set time is reached, the display shows the tube change alarm indicator

STANDBY Program the transfer function to activate a relay to start a second S Series in Standby, as a back up to the primary pump.



SIMPLE PROGRAMMING

The OLED operating display is easy to navigate with intuitive programming. Select from the various modes of operation:
Pump Signal Inputs
•   Analog: 4-20mA, 0-10VDC – scalable, invertible
•   Digital: Pulse, Hall Effect, PPM Feed Constant Flow, PPM Feed Variable Flow
•   Manual: Manual, 7 Day/24 Hour Timer, Cycle Timer

Pump Signal Outputs
•   Analog: 4-20mA
•   Digital: Three Relays

The pump can be programmed to respond based on a selected pump condition such as tube leak, tube change, standby, repeat pulse, run, mode change, low or high signal, low or high flow, drive fault, signal overrun, transfer and off.

SOLID CONSTRUCTION

•   Brushless DC motor is equipped with ball bearing support
•   Switch mode power supply is energy efficient
•   Totally enclosed pump is outdoor rated
•   OLED operating display is easy to navigate with intuitive programming
•   QuickPro® pump head offers tube replacement without tools
•   Splined shaft designed pump head & roller assembly allow smooth installation & replacement
•   NEMA 4X, NSF 61 & 372, cULus indoor/outdoor, CE IP65



Applications include:

•   Treatment of return wastewater before it can be processed for further usage
•   Injection of liquid biocides in cooling towers for prevention of Legionnaires disease
•   Corrosion, scale, and algae control on plumbing fixtures and water supply equipment
•   Metering additives specific to a manufacturing process
•   pH control for process water or metal plating discharge water.



STENNER PUMPS BUILT WITH A STRONG WORK ETHIC
1. Self-priming against maximum working pressure
2. Can inject off-gassing solutions
3. No vapor lock or loss of prime
4. Easy tube replacement without tools
5. Uniquely manufactured solid one piece tube construction
6. Tube lubrication not required
7. Three point roller design assists with anti-siphoning
8. Output reproducibility
9. Output volume not affected by back pressure
10. Foot, prime or de-gassing valve not required

 Classic Series Pumps

Main Features Of The Classic Series
•   3-point roller design assists in anti-siphon protection
•   Pump head requires no valves, allows for easy maintenance
•   Self-priming against maximum working pressure, foot valve not required
•   Pump does not lose prime or vapor lock
•   Pumps off-gassing solutions and can run dry
•   Output volume is not affected by back pressure
•   Injection check valve included with models rated 100 psi (6.9 bar) maximum
•   Easy to change pump tube; lubrication is not required
•   Pump tubes and pump heads interchange between models

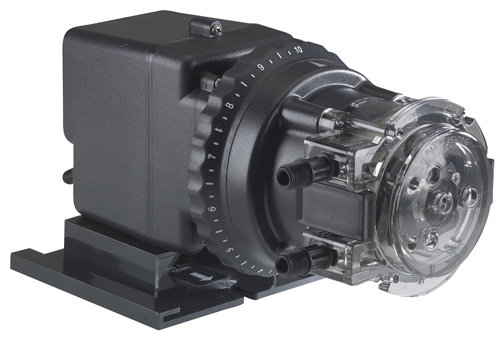

Classic Single Head Adjustable Output Pump

Popular choice for water treatment solutions

The Single Head Adjustable Output Pump is one of four types in Stenner’s Classic Series and is an ideal choice for treating problem water. The pump can inject water treatment solutions for pH control or to oxidize iron, hydrogen sulfide or manganese for removal by filtration. Disinfection, pH control or adjustment, corrosion and scale control and oxidation are common water treatment applications found in markets such as Water Conditioning, Animal Health, Industrial Process, Water and Wastewater, and Cooling Towers.

The versatility of the product expands into other markets as well, such as Legionella prevention in Cooling Towers, sprinkler head cleaning in Irrigation and Horticulture and plating bath treatment in the Metal Finishing industry. The pumps are widely popular in the commercial pool industry for sanitizing swimming pool water or maintaining the equipment.

Unique Stenner Features

•   Interchangeable pump heads and tubes to convert one model to another without having to purchase a new pump
•   Easy and fast tube replacement without tools with the QuickPro®  pump head
•   The pump is built with three detachable components; the motor, feed rate control and the pump head that can be separated without tools

How the Single Head Adjustable Output Pump Works

The output is determined by three factors; the rpm of the motor gears, the setting on the feed rate control and the pump tube size. The feed rate control has an external dial ring that is labeled L to 10 offering an adjustable output range from 5% to 100% in 2.5% increments.



Classic  Single Head Fixed Output Injection Pump

The electromechanical Classic Single Head Fixed Output Injection Pump works well with controllers.

The Single Head Fixed Output Injection Pump is one of four types in Stenner’s Classic Series. This peristaltic metering pump injects solutions at a fixed rate and can be activated by a water meter for proportional feed for drinking water disinfection for animal health or homeowners. It can also be installed with a controller for sanitizing a swimming pool. Great news for installers in the commercial pool industry, the Classic Series single head fixed pump has been tested by ETL to conform to the ANSI/NSF standard 50 when used with ANSI/NSF 50 listed controllers. Additional applications include pH control, oxidation, corrosion and scale control and more.

Unique Stenner Features
•   Interchangeable pump heads and tubes to convert one model to another; not necessary to purchase a new pump
•   Easy and fast tube replacement without tools with the QuickPro®  pump head
•   The pump is built with two detachable components; the motor and the pump head that can be separated without tools

How the Single Head Fixed Output Injection Pump Works – The output is not adjustable and is determined by the rpm of the motor gears and the size of the pump tube. The motor’s output shaft rotates at a fixed rpm which drives the roller assembly within the pump head.



Classic Double Head Adjustable Chemical Injection Pump

The Double Head Adjustable Output Pump is another variation to select from in the Classic Series, electro-mechanical pump line.  Similar to the other models in the Classic series, the Double Head Adjustable Output Pump will dose solutions such as sodium hypochlorite, acid, polyphosphates, biocides for common water treatment applications that include disinfection, pH control, corrosion and scale control,  oxidation  and  sanitization.  This pump series provides twice the output for large Commercial Pool and Aquatic Facilities or Water and Wastewater treatment plants. The pump can also inject two compatible solutions at the same ratio. The Classic Series double head adjustable output pump is built the same way as the single head adjustable with the addition of another pump head that doubles the output.

How the Double Head Adjustable Output Pump Works – The output is determined by three factors; the rpm of the motor gears, the setting on the feed rate control and the pump tubes in both heads. The feed rate control has an external dial ring that is labeled L to 10 offering an adjustable output of 5% to 100% in 2.5% increments.

Unique Stenner Features
•   Interchangeable pump heads and tubes to convert one model to another; not necessary to purchase a new pump
•   Easy and fast tube replacement without tools with the QuickPro®  pump head
•   The pump is built with four detachable components; the motor, feed rate control and two pump heads, that can be separated without tools



Classic Double Head Fixed Chemical Injection Pump

The Double Head Fixed Output, another variation to select from in the Classic Series, electro-mechanical pump line.
If requiring more output than the Classic single head pump offers, especially with 25 psi installations for larger commercial swimming pools, then the double head pump may be your answer. Similar to the other models in the Classic series, the pump will dose solutions such as sodium hypochlorite, acid, polyphosphates, biocides for common water treatment applications that include disinfection, pH control, corrosion and scale control, oxidation and sanitization. Also utilized in water and wastewater treatment plants, the pump can inject two compatible liquids at the same ratio. The Classic Series double head fixed pump is built the same way as the single head fixed with the addition of another pump head that doubles the output. The pump runs at 100% fixed rate and can be installed to an ORP type controller to manage the output.

Unique Stenner Features
•   Interchangeable pump heads and tubes to convert one model to another without having to purchase a new pump
•   Easy and fast tube replacement without tools with the QuickPro®  pump head
•   The pump is built with three detachable components; the motor and two pump head that can be separated without tools.

How the Double Head Fixed Chemical Injection Pump Works – The fixed rate pump does not have an output adjustment. The output is determined by three factors; the rpm of the motor gears and the pump tubes in both heads. The motor’s output shaft rotates at a fixed rpm which drives the roller assembly within the pump head.

Additional Stenner Pump Models Are Available – Contact Sales For More Information



.
